DCD

Código: 61800-000

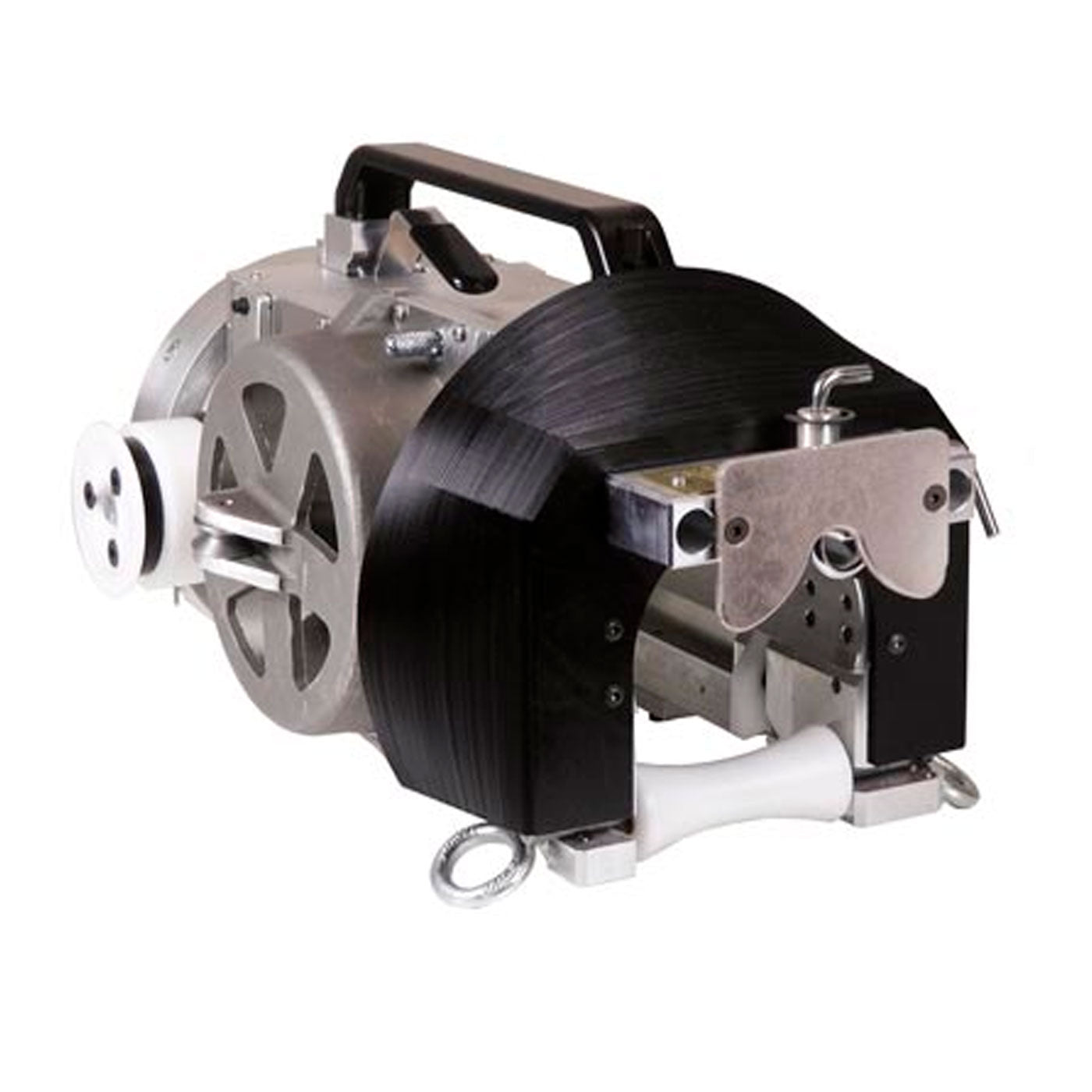

Lashadora "Falcon"

Sobre pedido con tiempo de espera  
El tiempo de entrega puede ser mayor, debido a que será solicitado directo con el proveedor.

"Falcon" lasher for cables up to 3 1/2".

The DCD Falcon Lasher is designed to single or double lash cables up to 3 1/4″ in outside diameter without requiring strand tension, reducing installation times and overlaying on existing cables.

Benefits

  • Single or double lashing without the need for strand tension, facilitating overlashing on in-service installations.
  • Operating weight of 20 lb (9.1 kg) minimizes operator fatigue and speeds up movement between poles.
  • Handle with clutch allows mounting and passing the unit around poles without cutting the lashing wire or dismounting the drive reels.
  • Front and rear Delrin rollers preserve cable insulation and ensure smooth advancement over curves or obstacles.
  • Magazine door with quick-release mechanism for easy loading of metallic or non-metallic wire (.045″ and .038″) and quick spool changes.
  • See it in the following video

Specifications

Lasher model Falcon for cables up to 3 1/2 in
Wire diameter 0.038 to 0.061 in
Dimensions 20 x 11 x 10 in

Unit of sale: Piece

Presentation/Packaging/Content: Case with 1 piece

Explorar Ficha técnica
