CABLEMATIC

Código: CST 840TX

Clave: 32180

Cable Flaring Tool 840

Sobre pedido con tiempo de espera  
El tiempo de entrega puede ser mayor, debido a que será solicitado directo con el proveedor.

Flaring Tool for Removing Aluminum and Dielectric Sleeves from 840 Cable, Commscope P3 Cable, Times Fiber TX

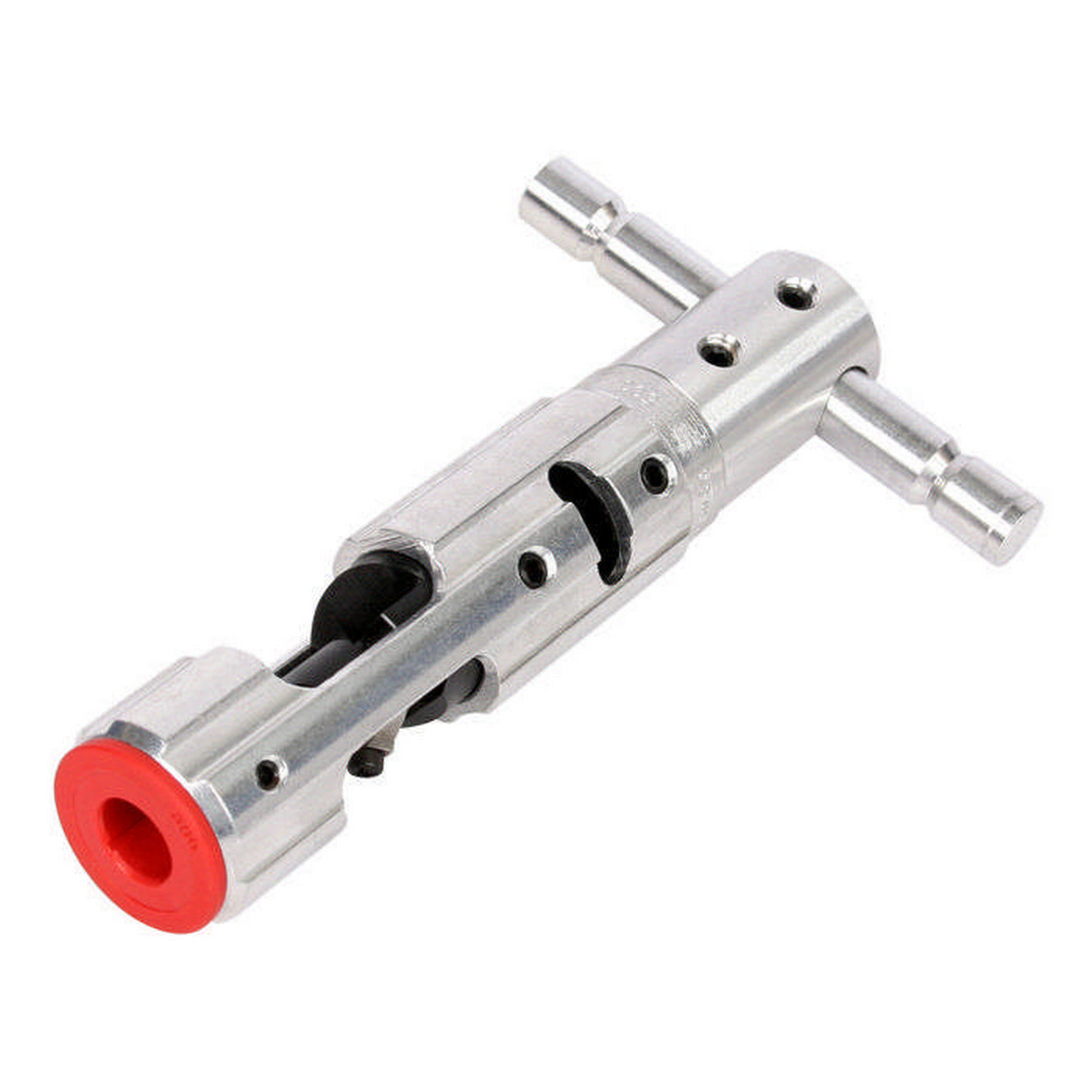

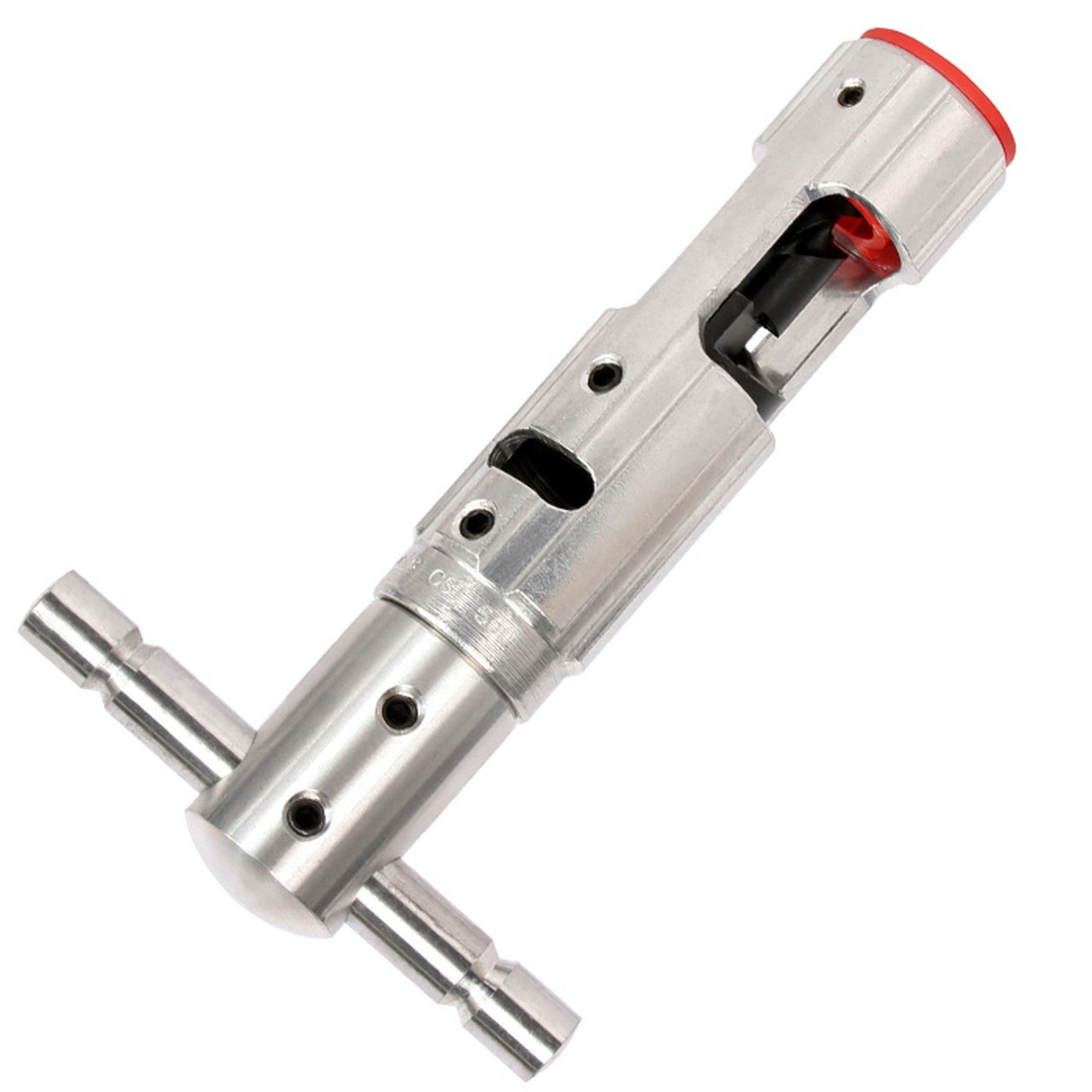

The CST 840TX flaring tool is designed for efficient removal of aluminum and dielectric sleeves from CommScope P3 and Times Fiber TX cables.

Its robust construction and optimized design allow this operation to be performed quickly and precisely.

Benefits

  • Removes the aluminum sleeve and dielectric in a single operation.
  • Heat-treated cutting blade for smooth chamfers.
  • Possibility of replacing only the blade without needing to change the entire drill bit.
  • Spiral fluted drill bit made of heat-treated steel.
  • All-metal construction, robust and durable.
  • Stop collars available for exact cable preparation segments between 0.50 and 2.00 inches (12.7 to 50.8 mm).
  • Color-coded bushings according to cable type.
  • Compatible with CC-100 and CC-200 tools for cleaning or removing remnants from the center conductor.

Specifications

Operation Manual
Handle T-type
Adapter 3/8-inch (9.5mm) drill
Cable removal 840
Length 6.88 inches (175 mm)
Weight 13 ounces (369 g).

Unit of sale: Piece

Presentation/Packaging/Content: Box with 1 piece
